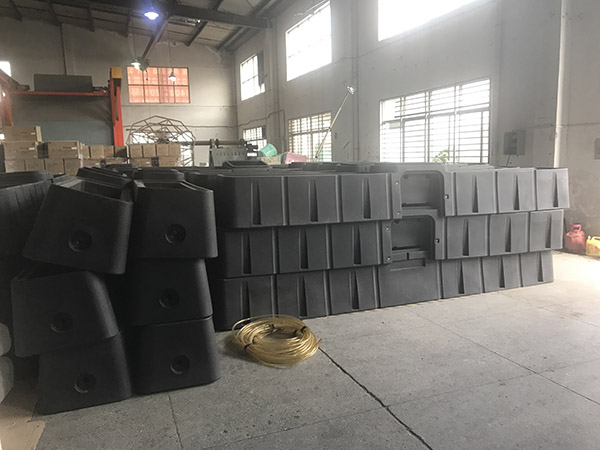

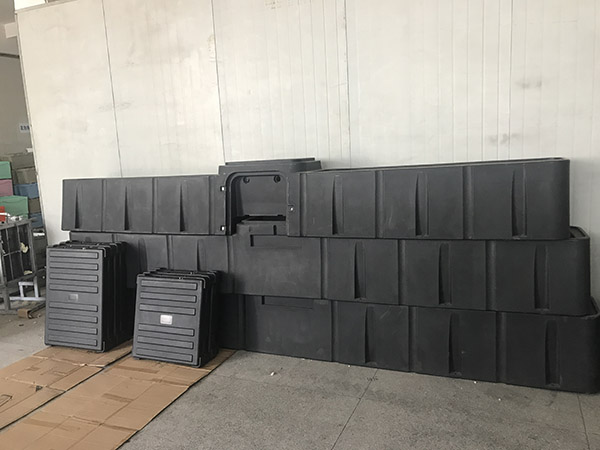

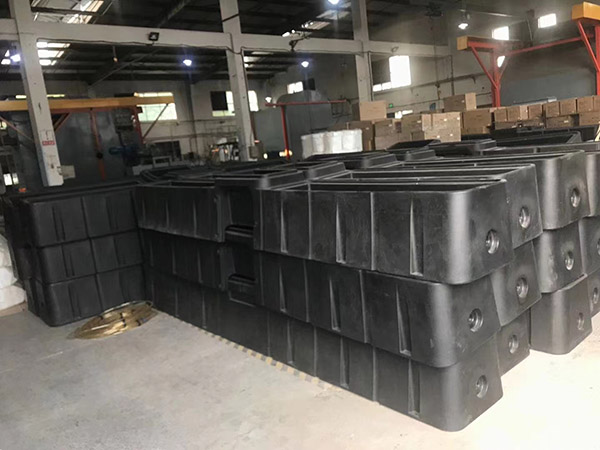

Rotomolded feed trough for cattle customized

Enhance your farming operations with our range of livestock feeding solutions, including cow feeder troughs and feed troughs designed specifically for cattle. Explore our durable and versatile feeder troughs for cows, along with options like galvanized cattle water troughs and plastic cattle feed troughs. Customized to your specifications using rotomolding technology, our products ensure optimal feeding for your livestock.
Description
Enhance your farming operations with our range of livestock feeding solutions, including cow feeder troughs and feed troughs designed specifically for cattle. Explore our durable and versatile feeder troughs for cows, along with options like galvanized cattle water troughs and plastic cattle feed troughs. Customized to your specifications using rotomolding technology, our products ensure optimal feeding for your livestock.

feed trough for cattle


Rotomolded mold,rotational




We offer 3D design, opening mould, and rotational products manufacturing.

1. Design & Engineering Services

a. We can help you modify your original 3D drawing to make it suitable for rotational molding.

b. For new project,our in-house Design & Engineering Department will help advise and manage your

project all the way to a produced rototmolded part.

c. Sample canning and designing.

2. Rotational Molding Design Guides
a. Minimum wall separation 5x wall thickness (a)
b. Minimum wall separation 3x wall thickness (b)
c.Uniform wall thickness ± 20% (c)
d.±10% is considered precise tolerance (c)
e. Wall thickness .090" to 1.00" (c)
f.Different wall thickness can be produced based on functional requirements
g. Large flat areas need a crown or ribs (d)
h. Corners need minimum radius of 3/16"(e)
i.Structural strength
· Reinforcing ribs - average proportions
· Height 4x wall thickness (f)
· Width 5x wall thickness (g)
·Kiss-off ribbing (h)
· Part Finishing and Secondary Operations
Note: Design Guide information is based on Linear Low Density Polyethylene (LLDPE) other

materials tolerance can vary.

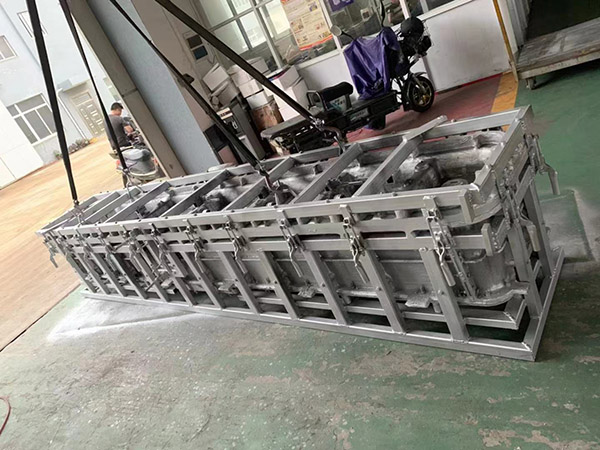

3. Cast Tooling Pattern
When your design is finalized the pattern production begins. Most commonly patterns are CNC

machined from the 3D model, but other options are available.
After the pattern is reviewed and signed-off on, the followers for determining the parting lines are

constructed. Next, the pattern goes through the sand ramming process creating the cope and drag.

Then our Tooling Department is ready to pour the tool.
4.Rotational Molding Plastic Parts
we can also provide production for plastic parts by rotational molding.



What is Rotational Molding?

Rotational moud or Roto Molding which is a high temperature, low volume, low pressure thermoplastic forming process .It mainly suite for producing hollow, one piece parts such as large oil or chemical tanks, kayaks, point of purchase displays, frames, cases, furniture,carts, dispensers, park equipment. The material can be UV resistant which can ensure the outdoor use of your products .
